gasket tape with a rectangular cross section
KWO® Universal HD is gasket tape of monoaxially expanded pure PTFE with a high density.
The tape is characterised by a rectangular cross-section and a relatively small width. The high density of the material and the special cross-section of the tape allow the sealing of very uneven sealing surfaces even at a low gasket stress.

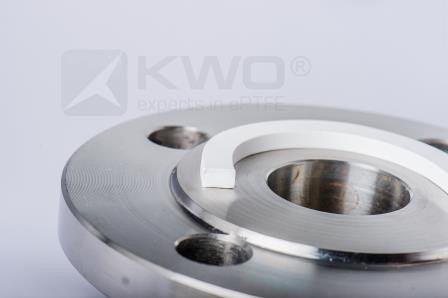

KWO® Universal HD sealant tape is suitable for delicate sealing applications on surfaces vulnerable to tension, such as glass or ceramics. The tape can also be used to seal weak flanges subject to considerable deformation, for example glass reinforced plastics (GRP), plastic fittings and ventilation facilities.
TECHNICAL DATA
| MATERIAL | 100 % expanded PTFE (ePTFE) - self-adhesive |
| TEMPERATURE RANGE | -268°C (-450°F) up to +270°C (+518°F), short-term +315°C (+600°F); recommended temperature range: from -200°C (-328°F) to +150°C (302°F)* |
| CHEMICAL RESISTANCE | pH range from 0 to 14; full chemical resistance (except molten alkali metals and elemental fluorine) |
| PRESSURE RESISTANCE | vacuum up to 80bar (1160psi) depending on the installation situation* |
| PHYSIOLOGICALLY INERT | physiologically harmless in all recommended applications |
| DENSITY | 1,00 g/cm³ ± 0,10 g/cm³ |
*Note: Temperature and pressure guides cannot necessarily be used simultaneously.
