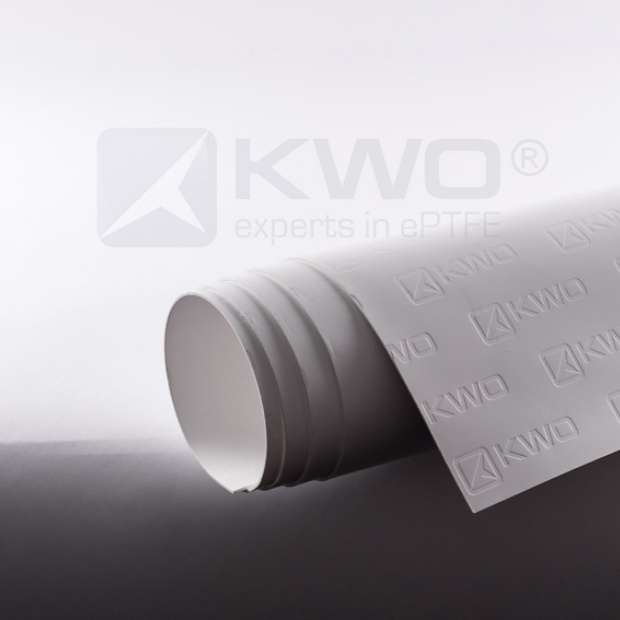

KWO® MultiTex® Sheet 2.0 is produced from 100% multi-directional expanded PTFE without any pigments or adhesives.
The flexible material adapts well to sealing surfaces, compensates irregularities and seals at very low stress. It is suitable for use in steel flanges and glass-lined steel flanges, as well as stress sensitive connections.

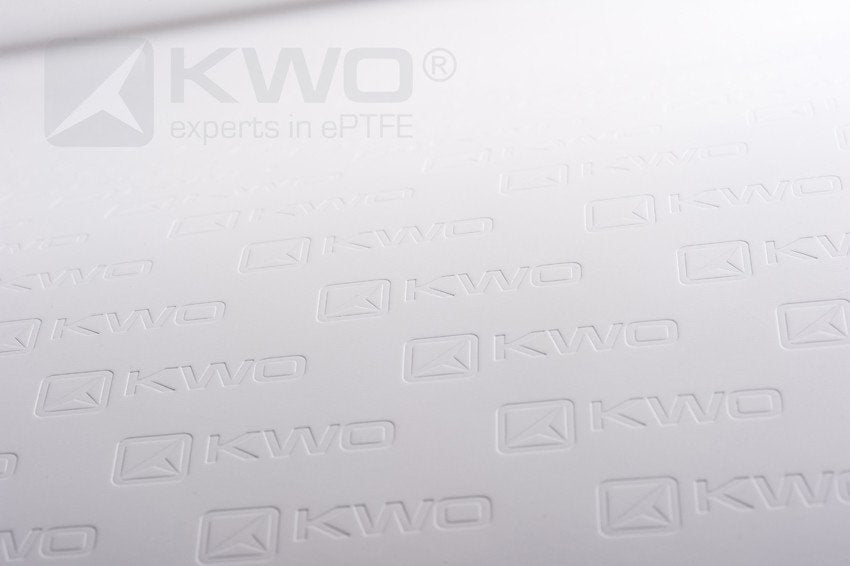

In addition to the printed sheets, which are intended for industrial use and enable clear traceability, we are also offering embossed sheets without ink, which are particularly suitable for ultra-clean applications such as in the food and pharmaceutical sector.
TECHNICAL DATA
MATERIAL
100% multidirectional expanded PTFE (ePTFE)
CHEMICAL RESISTANCE
in the entire pH range (pH 0-14, except molten alkali metals and elemental fluorine)
TEMPERATURE RANGE
-268°C (-450°F) up to +270°C (+518°F), short-term +315°C (+600°F); recommended temperature range: from -160°C (-256°F) to +230°C (+446°F)*
PRESSURE RESISTANCE
vacuum up to 200bar (3000psi) depending on the installation situation*
PHYSIOLOGICALLY INERT
physiologically harmless in all recommended applications
DENSITY
0,75 g/cm³ ± 0,15 g/cm³
*Note: Temperature and pressure guides cannot necessarily be used simultaneously.
