KWO®️ CellFlon®️ Sheet white

KWO®️ CellFlon®️ Sheet white

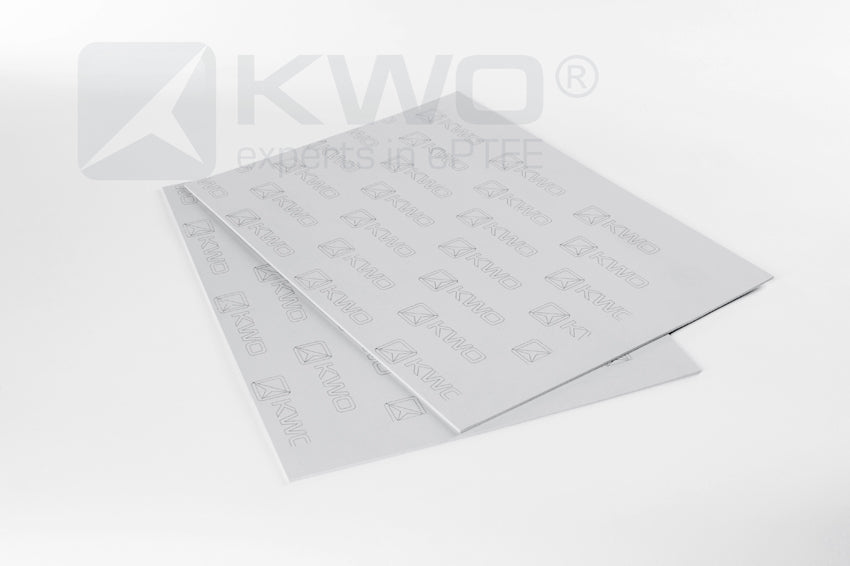

KWO® CellFlon® Sheet White is a gasket sheet material containing structured PTFE and Barium Sulphate.

KWO® CellFlon® Sheet White is especially for use in the chemical and petrochemical industry.

Suitable for sealing most chemicals across the whole pH range (0-14), including strong acids, hydrocarbons, steam, solvents and others.

TECHNICAL DATA

MATERIAL structured PTFE with Barium Sulphate
CHEMICAL RESISTANCE in the entire pH range (pH 0-14, except molten alkali metals or elemental fluorine)
TEMPERATURE RANGE recommended temperature range: from -210°C (-346°F) to +260°C (+500°F), material heat resistant up to +315°C (+600°F)*
PRESSURE RANGE vacuum up to 80bar (1200psi) depending on the installation situation*
PHYSIOLOGICALLY INERT physiologically harmless in all recommended applications
DENSITY 2,80 g/cm³ ± 0,25 g/cm³

*NOTE: temperature and pressure guides cannot necessarily be used simultaneously.
