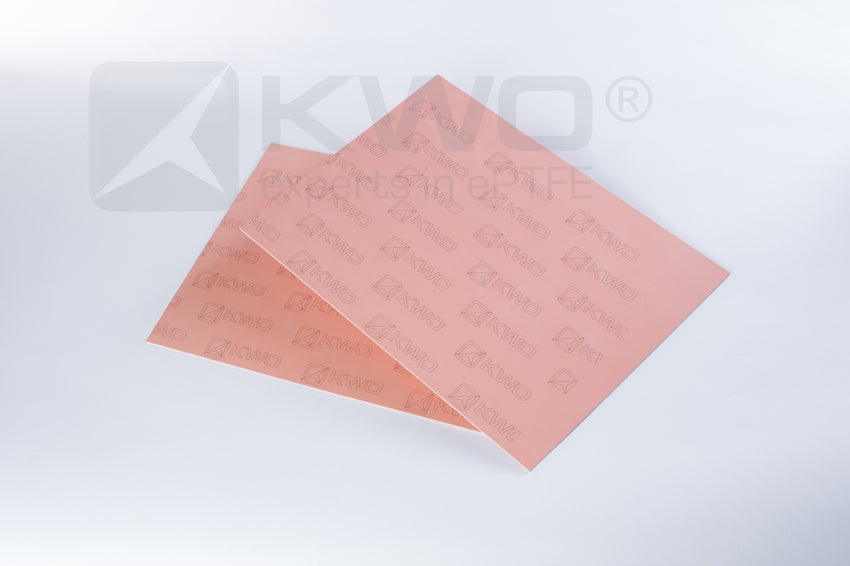

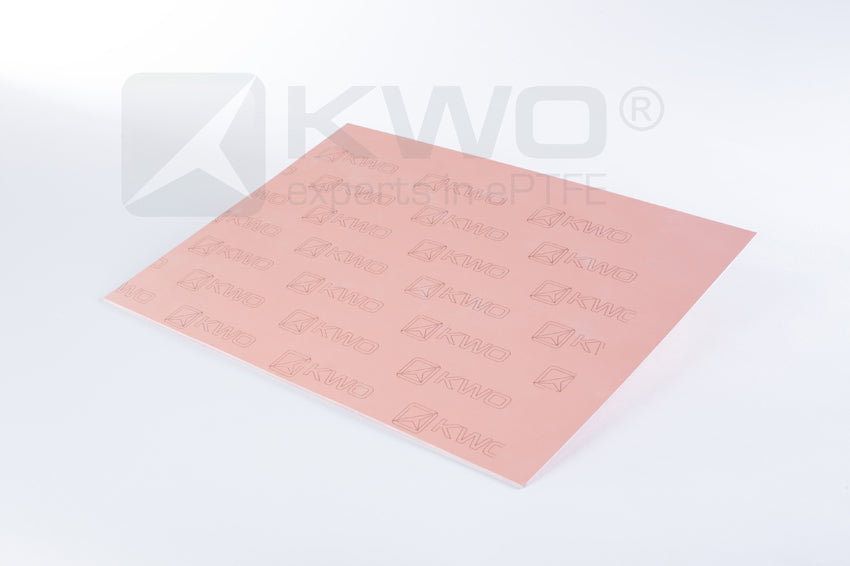

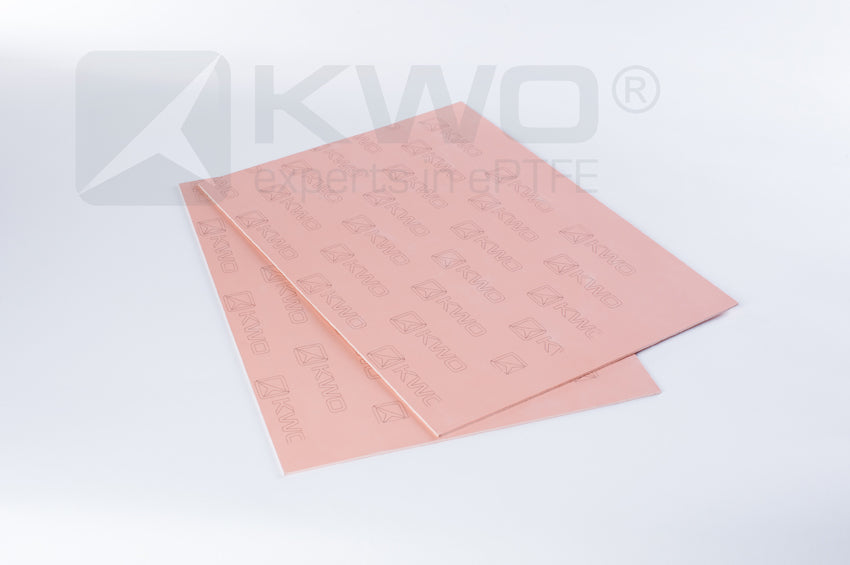

KWO® CellFlon® Sheet Brown is a gasket sheet material containing structured PTFE and Silica.
KWO® CellFlon® Sheet Brown is especially for use in the chemical and petrochemical industry.
Suitable for sealing most chemicals across the whole pH range (0-14), including strong acids, hydrocarbons, steam, solvents or chlorine.
TECHNICAL DATA
| MATERIAL |
structured PTFE with Silica |
| CHEMICAL RESISTANCE |
in the entire pH range (pH 0-14, except molten alkali metals or elemental fluorine) |
| TEMPERATURE RANGE |
recommended temperature range: from -210°C (-346°F) to +260°C (+500°F), material heat resistant up to +315°C (+600°F)* |
| PRESSURE RANGE |
vacuum up to 80bar (1200psi) depending on the installation situation* |
| PHYSIOLOGICALLY INERT |
physiologically harmless in all recommended applications |
| DENSITY |
2,20 g/cm³ ± 0,25 g/cm³ |
*NOTE: temperature and pressure guides cannot necessarily be used simultaneously.
